Neutrik opticalCON^® ADVANCED MTP

The opticalCON MTP® cable connector accommodates either 12 or 24 optical fibres based on conventional and proven MTP® connectivity. Available in multimode (PC) or singlemode (APC), the connector is protected by a ruggedised and durable all-metal housing. It features a spring loaded push-pull locking mechanism and excellent cable retention using aramid yarn. The optical connection is exceptionally well protected against dirt and dust by an automatically operated sealing cover.

The opticalCON MTP^® cable connector features heavy-duty strain relief and is the ideal solution for point-to-point multi-fibre signal transmission. The color-coded cable connector is pre-assembled and available in a variety of mobile field cables.

The opticalCON MTP^® X-Treme 12 channel cable offers a cut-proof and rodent resistant double jacket glass yarn armoured cable construction.

As an alternative to opticalCON MTP’s single 12 or 24-fiber connector, Neutrik offers a wide variety of SPLIT cable configuration. opticalCON^® SPLIT offers an alternative for users of opticalCON^® DUO or QUAD chassis connectors, providing advantages in regards to field assembly and potential repair cost.

Singlemode or multimode

Cable spec: Advanced or X-Treme

12 or 24 fibre options

Custom lengths also available – please contact us to discuss

FEATURES

The Neutrik range provides a range of benefits that make this option well suited for harsh environments and industries requiring temporary data connectivity.

PORTABLE REEL

Includes portable, deployable reel.*

SEALING SHUTTER

Automatic sealing shutter with silicone gasket for low maintenance.

CABLE RETENTION

All-metal housing and heavy duty cable retention.

IP65 RATED

Dirt, dust and water protection to IP65 in mated condition.

RELIABLE LOCKING

Reliable Push-Pull locking mechanism.

EASY CLEAN

Easy to clean, no special tools required.

RUGGED

Suitable for demanding applications such as touring, broadcast & rental.

*Or coiled, depending on packaging option selected during configuration above.

CABLE TYPES

opticalCON MTP12 – NKO12SA-A/ NKO12M-A

Rugged and lightweight, opticalCON MTP 12 fibre mobile field cable, excellent cable retention due to aramid yarn, black PUR outer jacket, available in singlemode (APC) or multimode (PC).

opticalCON MTP12 Options

wdt_ID	Product Code	Mode	Cable Type	Packaging	Length
1	NKO12SA-A-0-50	Singlemode	MTP12	Coiled	50m
3	NKO12SA-A-3-50	Singlemode	MTP12	GT380	50m
5	NKO12SA-A-0-100	Singlemode	MTP12	Coiled	100m
7	NKO12SA-A-2-100	Singlemode	MTP12	GT310	100m
9	NKO12SA-A-0-150	Singlemode	MTP12	Coiled	150m
11	NKO12SA-A-5-150	Singlemode	MTP12	GT450	150m
13	NKO12SA-A-0-200	Singlemode	MTP12	Coiled	200m
15	NKO12SA-A-4-200	Singlemode	MTP12	HT582	200m
17	NKO12SA-A-0-250	Singlemode	MTP12	Coiled	250m
19	NKO12SA-A-4-250	Singlemode	MTP12	HT582	250m
21	NKO12SA-A-0-300	Singlemode	MTP12	Coiled	300m
23	NKO12SA-A-4-300	Singlemode	MTP12	HT582	300m
25	NKO12SA-A-0-400	Singlemode	MTP12	Coiled	400m
27	NKO12SA-A-6-400	Singlemode	MTP12	SK4812	400m
29	NKO12SA-A-0-500	Singlemode	MTP12	Coiled	500m
31	NKO12SA-A-6-500	Singlemode	MTP12	SK4812	500m
37	NKO12M-A-0-50	Multimode	MTP12	Coiled	50m
38	NKO12M-A-3-50	Multimode	MTP12	GT380	50m
39	NKO12M-A-0-100	Multimode	MTP12	Coiled	100m
40	NKO12M-A-2-100	Multimode	MTP12	GT310	100m
41	NKO12M-A-0-150	Multimode	MTP12	Coiled	150m
42	NKO12M-A-5-150	Multimode	MTP12	GT450	150m
43	NKO12M-A-0-200	Multimode	MTP12	Coiled	200m
44	NKO12M-A-4-200	Multimode	MTP12	HT582	200m
45	NKO12M-A-0-250	Multimode	MTP12	Coiled	250m
46	NKO12M-A-4-250	Multimode	MTP12	HT582	250m
47	NKO12M-A-0-300	Multimode	MTP12	Coiled	300m
48	NKO12M-A-4-300	Multimode	MTP12	HT582	300m
49	NKO12M-A-0-400	Multimode	MTP12	Coiled	400m
50	NKO12M-A-6-400	Multimode	MTP12	SK4812	400m
51	NKO12M-A-0-500	Multimode	MTP12	Coiled	500m
52	NKO12M-A-6-500	Multimode	MTP12	SK4812	500m

opticalCON MTP24 – NKO24SA-A/ NKO24M-A

24 fibre opticalCON MTP24 mobile field cable, excellent cable retention due to aramid yarn, black PUR outer jacket, available in singlemode (APC) or multimode (PC).

opticalCON MTP24 Options

wdt_ID	Product Code	Mode	Cable Type	Packaging	Length
1	NKO24SA-A-0-50	Singlemode	MTP24	Coiled	50m
2	NKO24SA-A-3-50	Singlemode	MTP24	GT380	50m
3	NKO24SA-A-0-100	Singlemode	MTP24	Coiled	100m
4	NKO24SA-A-3-100	Singlemode	MTP24	GT380	100m
5	NKO24SA-A-0-150	Singlemode	MTP24	Coiled	150m
6	NKO24SA-A-3-150	Singlemode	MTP24	GT380	150m
7	NKO24SA-A-0-200	Singlemode	MTP24	Coiled	200m
8	NKO24SA-A-5-200	Singlemode	MTP24	GT450	200m
9	NKO24SA-A-0-250	Singlemode	MTP24	Coiled	250m
10	NKO24SA-A-5-250	Singlemode	MTP24	GT450	250m
11	NKO24SA-A-0-300	Singlemode	MTP24	Coiled	300m
12	NKO24SA-A-4-300	Singlemode	MTP24	HT582	300m
13	NKO24SA-A-0-400	Singlemode	MTP24	Coiled	400m
14	NKO24SA-A-4-400	Singlemode	MTP24	HT582	400m
15	NKO24SA-A-0-500	Singlemode	MTP24	Coiled	500m
16	NKO24SA-A-4-500	Singlemode	MTP24	HT582	500m
17	NKO24SA-A-0-600	Singlemode	MTP24	Coiled	600m
18	NKO24SA-A-4-600	Singlemode	MTP24	HT582	600m
19	NKO24SA-A-0-700	Singlemode	MTP24	Coiled	700m
20	NKO24SA-A-6-700	Singlemode	MTP24	SK4812	700m
21	NKO24M-A-0-50	Multimode	MTP24	Coiled	50m
22	NKO24M-A-3-50	Multimode	MTP24	GT380	50m
23	NKO24M-A-0-100	Multimode	MTP24	Coiled	100m
24	NKO24M-A-3-100	Multimode	MTP24	GT380	100m
25	NKO24M-A-0-150	Multimode	MTP24	Coiled	150m
26	NKO24M-A-3-150	Multimode	MTP24	GT380	150m
27	NKO24M-A-0-200	Multimode	MTP24	Coiled	200m
28	NKO24M-A-5-200	Multimode	MTP24	GT450	200m
29	NKO24M-A-0-250	Multimode	MTP24	Coiled	250m
30	NKO24M-A-5-250	Multimode	MTP24	GT450	250m
31	NKO24M-A-0-300	Multimode	MTP24	Coiled	300m
32	NKO24M-A-4-300	Multimode	MTP24	HT582	300m
33	NKO24M-A-0-400	Multimode	MTP24	Coiled	400m
34	NKO24M-A-4-400	Multimode	MTP24	HT582	400m
35	NKO24M-A-0-500	Multimode	MTP24	Coiled	500m
36	NKO24M-A-4-500	Multimode	MTP24	HT582	500m
37	NKO24M-A-0-600	Multimode	MTP24	Coiled	600m
38	NKO24M-A-4-600	Multimode	MTP24	HT582	600m
39	NKO24M-A-0-700	Multimode	MTP24	Coiled	700m
40	NKO24M-A-6-700	Multimode	MTP24	SK4812	700m

opticalCON MTP12 X-TREME – NKOX12SA-A/ NKOX12M-A

12 fibre opticalCON MTP X-TREME cable offering cut-proof and rodent resistant double jacket glass yarn armoured cable construction, excellent cable retention due to aramid yarn, black PUR outer jacket.

opticalCON MTP12 X-TREME Options

wdt_ID	Product Code	Mode	Cable Type	Packaging	Length
1	NKOX12SA-A-0-50	Singlemode	MTP X-Treme	Coiled	50m
2	NKOX12SA-A-5-50	Singlemode	MTP X-Treme	GT450	50m
3	NKOX12SA-A-0-100	Singlemode	MTP X-Treme	Coiled	100m
4	NKOX12SA-A-5-100	Singlemode	MTP X-Treme	GT450	100m
5	NKOX12SA-A-0-150	Singlemode	MTP X-Treme	Coiled	150m
6	NKOX12SA-A-4-150	Singlemode	MTP X-Treme	HT582	150m
7	NKOX12SA-A-0-200	Singlemode	MTP X-Treme	Coiled	200m
8	NKOX12SA-A-4-200	Singlemode	MTP X-Treme	HT582	200m
9	NKOX12SA-A-0-250	Singlemode	MTP X-Treme	Coiled	250m
10	NKOX12SA-A-0-300	Singlemode	MTP X-Treme	Coiled	300m
11	NKOX12SA-A-6-300	Singlemode	MTP X-Treme	SK4812	300m
12	NKOX12SA-A-0-400	Singlemode	MTP X-Treme	Coiled	400m
13	NKOX12SA-A-0-500	Singlemode	MTP X-Treme	Coiled	500m
14	NKOX12M-A-0-50	Multimode	MTP X-Treme	Coiled	50m
15	NKOX12M-A-5-50	Multimode	MTP X-Treme	GT450	50m
16	NKOX12M-A-0-100	Multimode	MTP X-Treme	Coiled	100m
17	NKOX12M-A-5-100	Multimode	MTP X-Treme	GT450	100m
18	NKOX12M-A-0-150	Multimode	MTP X-Treme	Coiled	150m
19	NKOX12M-A-4-150	Multimode	MTP X-Treme	HT582	150m
20	NKOX12M-A-0-200	Multimode	MTP X-Treme	Coiled	200m
21	NKOX12M-A-4-200	Multimode	MTP X-Treme	HT582	200m
22	NKOX12M-A-0-250	Multimode	MTP X-Treme	Coiled	250m
23	NKOX12M-A-0-300	Multimode	MTP X-Treme	Coiled	300m
24	NKOX12M-A-6-300	Multimode	MTP X-Treme	SK4812	300m
25	NKOX12M-A-0-400	Multimode	MTP X-Treme	Coiled	400m
26	NKOX12M-A-0-500	Multimode	MTP X-Treme	Coiled	500m

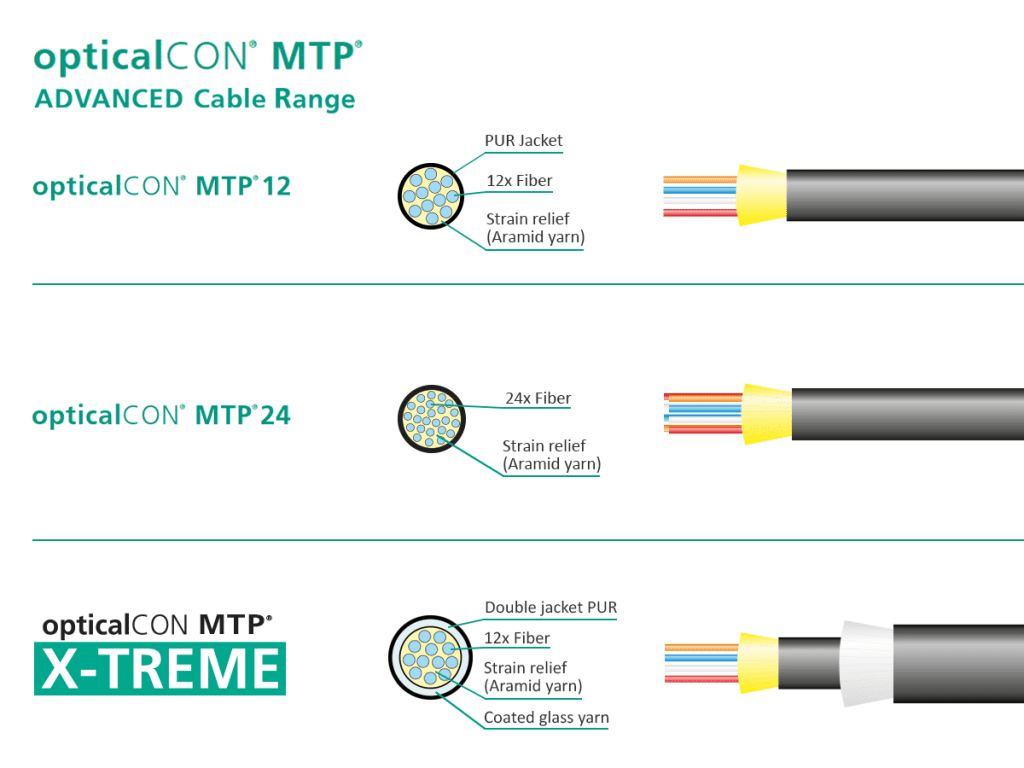

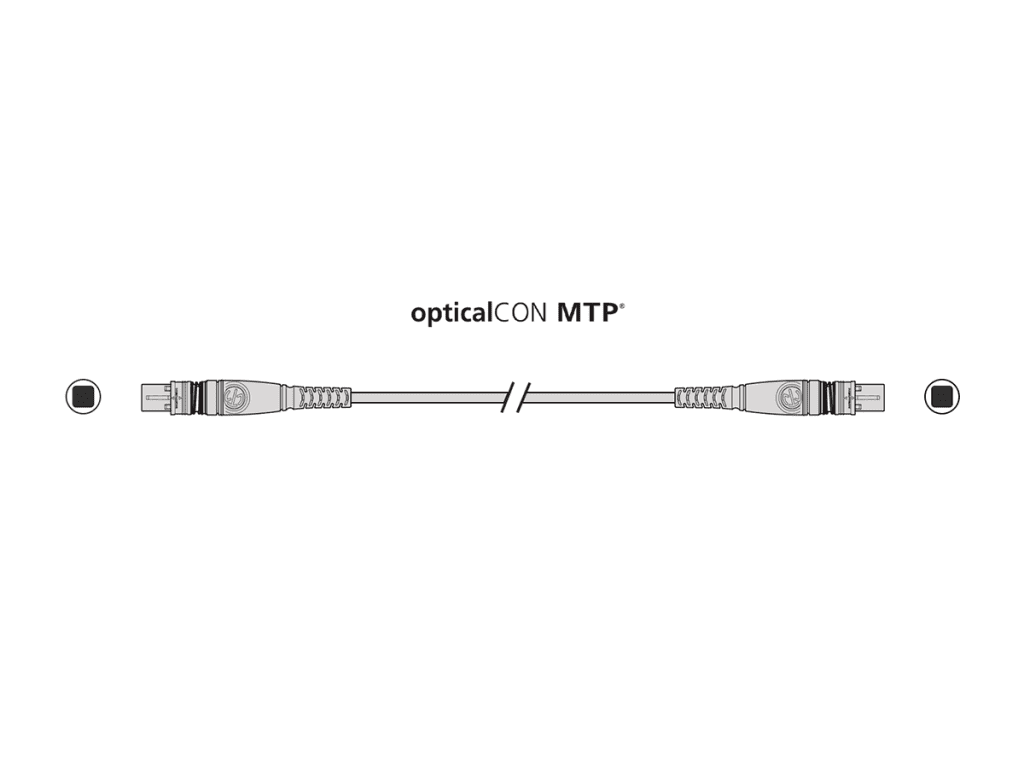

CABLE DIAGRAMS

REEL TYPES

Note: option 3 not available with X-TREME

Q & A

Can you supply lengths that are not listed above?

Yes, all our cables are made to order, so we can supply in any length to meet your exact requirements. Please contact us and we will send you a formal quote.

Are you able to do repairs and servicing?

Yes, we can repair/service opticalCON DUO and QUAD cables in house, both Advanced and LITE. For opticalCON MTP we can arrange the repair or service though Neutrik.

Do you offer the option to loan or hire cables?

We have some cables in stock that are available to loan or hire. Please call us on 01488 685800 and we can check we have the products you need.

What are the lead times?

Generally these cables are made to order, so the turnaround can vary from a couple of days upwards depending on the type and quantity and what else we have booked. It is always best to call and check as we will do what we can to meet your requirements.

Is it possible to have sockets on the drum, rather than plug to plug?

Yes we can mount IP sockets on the centre plate, please contact us for a quotation.

Can I have different connectors on each end of my assembly. For example, IP-PRO2 Plug to LC?

Yes, we can mix and match connectors as required. With standard connectors (LC/ST/SC) we can also offer protection in a padded sock or removable tube.

Can I put this on my own drums, rather than putting on one of your deployable drums?

Yes, depending on the length, we can either coil your assembly or put it on a wooden drum, so that you can decant.

Can I have different connectors on each end of my deployable a cable? For example, ST on one end and LC at the other?

Yes, if you contact us we can provide a quotation. You can choose which connector type is required on the deploy end.

I am interested in your ArmourLux product, however I have seen that Neutrik offer an X-TREME cable option. Do you offer ArmourLux with X-TREME cable also?

We can supply ArmourLux terminated on X-TREME and other cable options not listed. Please contact us for more information.

What are my delivery options?

Mainland UK
Next working day delivery is offered as standard Monday-Friday for goods that are pre-made or in stock. Delivery times for Custom Made to Order items will vary, please call us to confirm delivery times. This service is only available for shipments to the UK Mainland, excluding the Scottish Highlands. If a quick delivery is important to you, you wish to check a manufacturing time for a custom made item or are placing an order after 3pm, please call the office on 01488 685800; we can confirm the stock availability and dispatch date very promptly.

International (Non-Mainland UK)
If your delivery location falls outside of the Mainland UK (i.e. International or Non-Mainland UK), after placing an order on the website, Universal Networks will contact you via e-mail or telephone to confirm the total cost of the order including delivery to your desired destination. We will then require your Credit or Debit Card details to process an offline payment.

Small Order Handling Charge
For orders under £100, a handling fee of £10 will be added to the basket in addition to the delivery charge.

To read more information, please visit our Delivery FAQ or Delivery Information pages.

Resources

Neutrik opticalCON MTP Brochure

Neutrik opticalCON MTP12 X-TREME Datasheet

Neutrik opticalCON MTP Handling Instructions

Neutrik opticalCON MTP Wiring Diagram

Specification

MECHANICAL SPECIFICATIONS

wdt_ID	Specification	Values
1	Cable Retention	500N
2	Insertion Force	< 45N
3	Withdrawal Force	< 45N
4	Lifetime	>2500 mating cycles
5	Locking Device	Push-Pull
6	Temperature Range	-40 °C to +75 °C

MATERIAL SPECIFICATIONS

wdt_ID	Specification	Values
1	Boot	Rubber (EPDM)
2	Bushing	Zinc diecast (ZnAl4Cu1)
3	Insert	Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
4	Shell	Zinc diecast (ZnAl4Cu1)
5	Shell plating	Black chromium
6	Strain relief	Brass, Ni plated

MOBILE CABLE SPECIFICATIONS

wdt_ID	Specification	Values
1	Colour	Black Matt
2	Core diameter	Singlemode 9 µm, Multimode 50 µm
4	Cladding diameter	125 µm PUR
5	Min. bending radius	MTP 12/24: 8.2cm, MTP12 X-TREME: 10.8cm
6	Number of fibres	12 or 24
7	Cable retention	Aramid yarn
8	Weight	MTP 12: 103kg/km, MTP24: 43kg/km, MTP12 X-TREME: 111kg/km
11	Overall diameter	MTP 12: 8.2mm, MTP24: 7mm, MTP12 X-TREME: 10.8mm

OPTICAL SPECIFICATIONS

wdt_ID	Specification	Values
1	Insertion loss	< 0.9 dB / connection
2	Optical wiring	Method A
